Warwick RockBoard PatchWorks Solderless Patch Cable Set – 300 cm / 118 7/64″ Cable + 10 Plugs – Gold
₱2,499.00
● solderless patch cable system

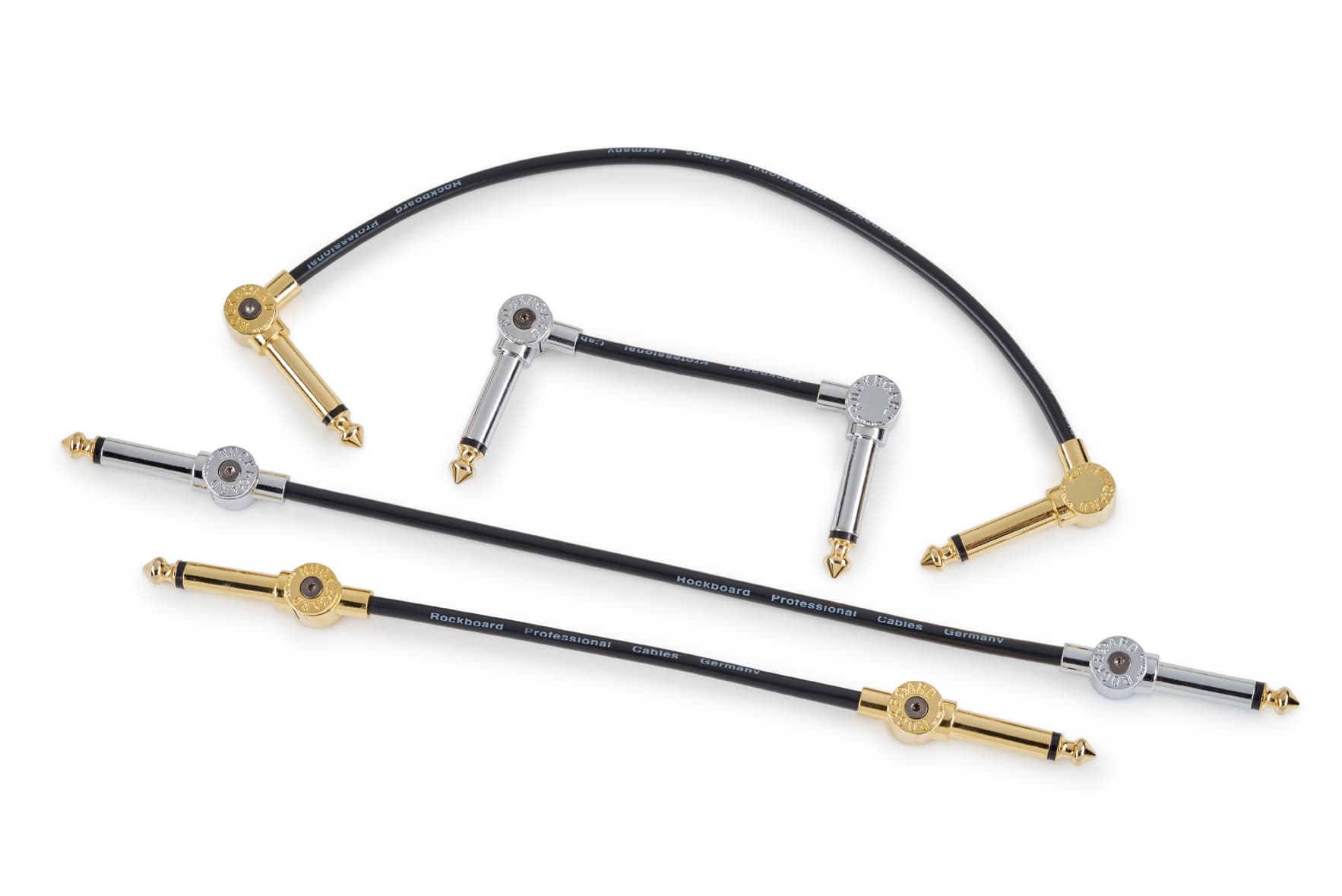

● set for assembly of 5 patch cables

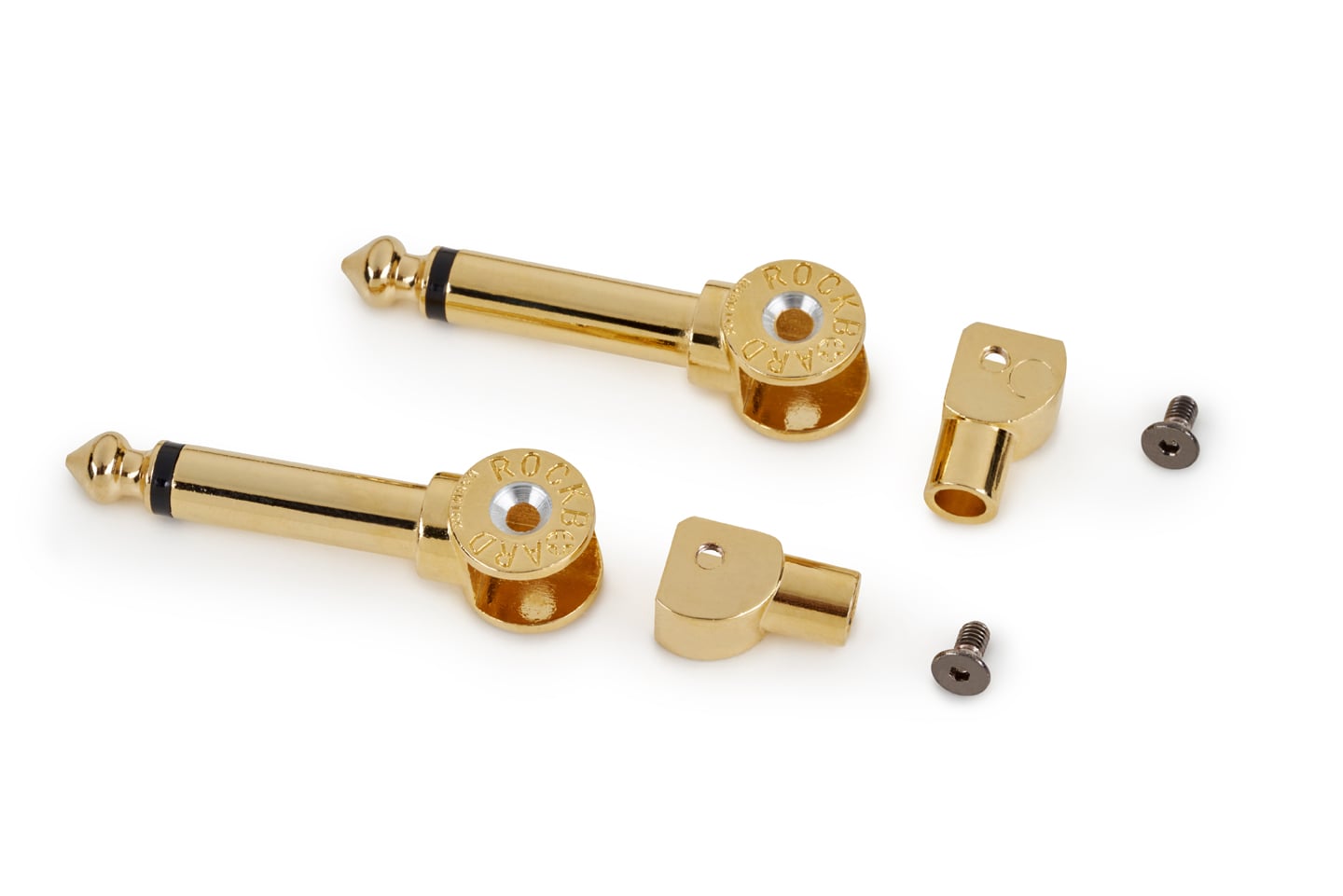

● unique 2-directional 2-piece connector design (patent pending)

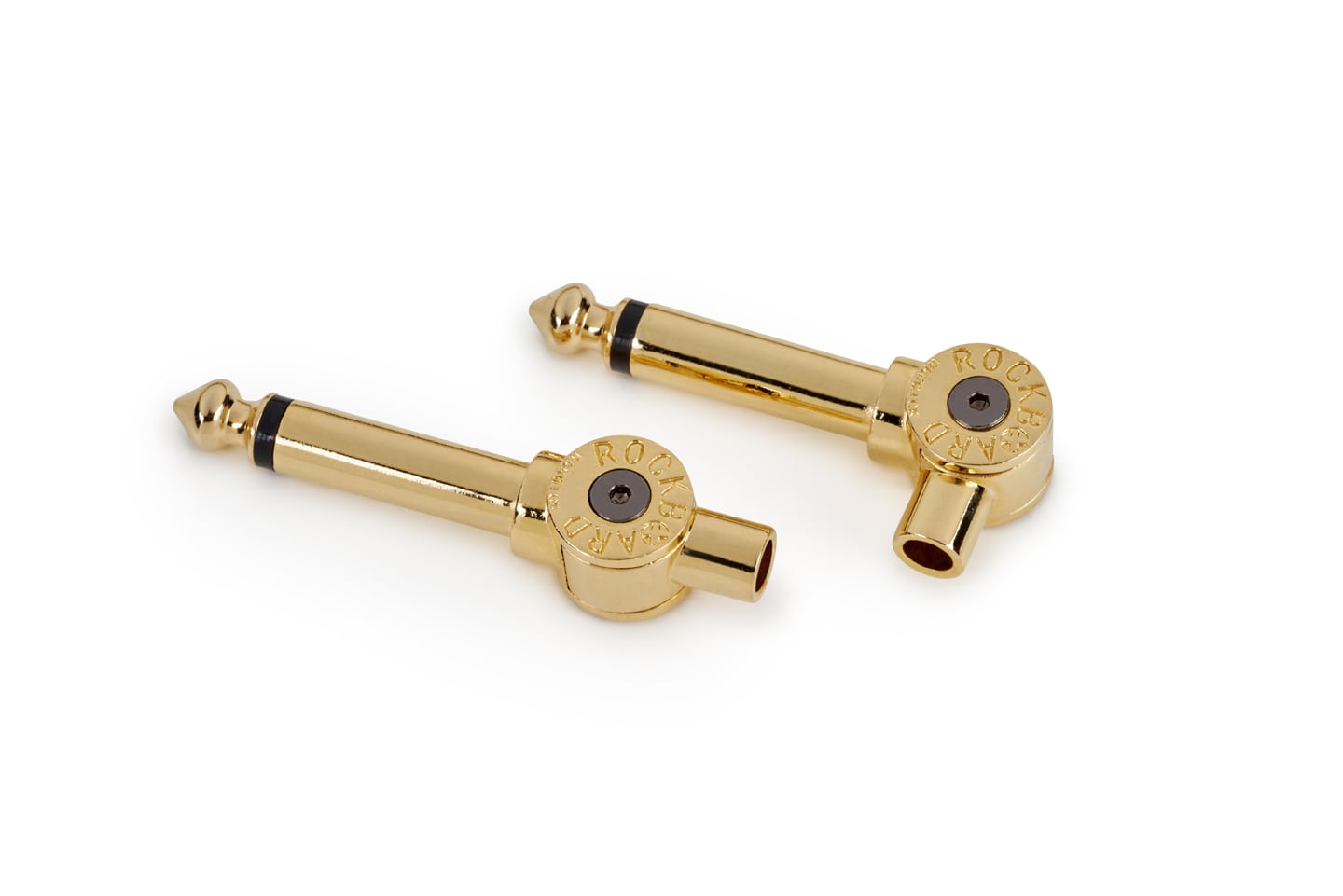

● can be assembled as either straight or angled plugs
● plug’n play design – no cable stripping required

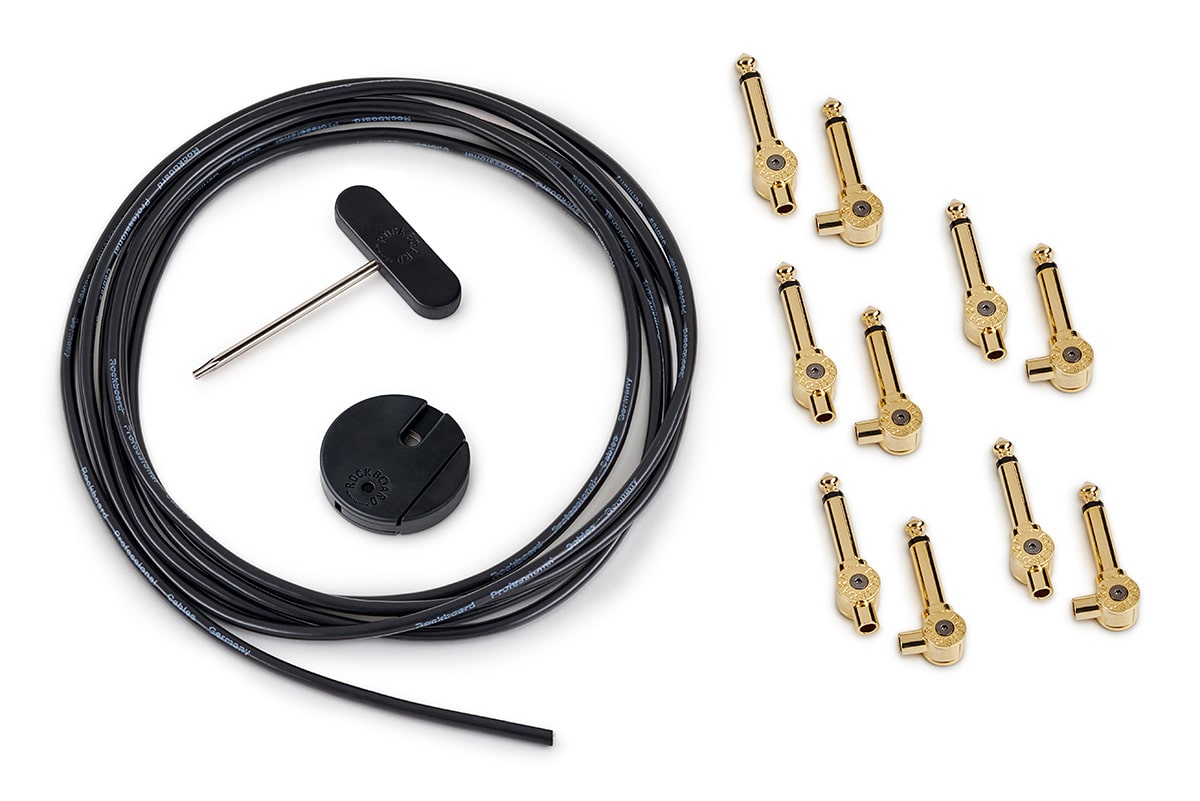

● includes 10 plugs and 300 cm / 118 7/64″ cable
● plug dimensions straight (L x W x H) 20 x 12 x 10 mm / 13/16″ x 1/2″ x 3/8″
● plug dimensions angled (L x W x H) 15 x 13 x 10 mm / 9/16″ x 1/2″ x 3/8″
● gold plated tips
● gold finish

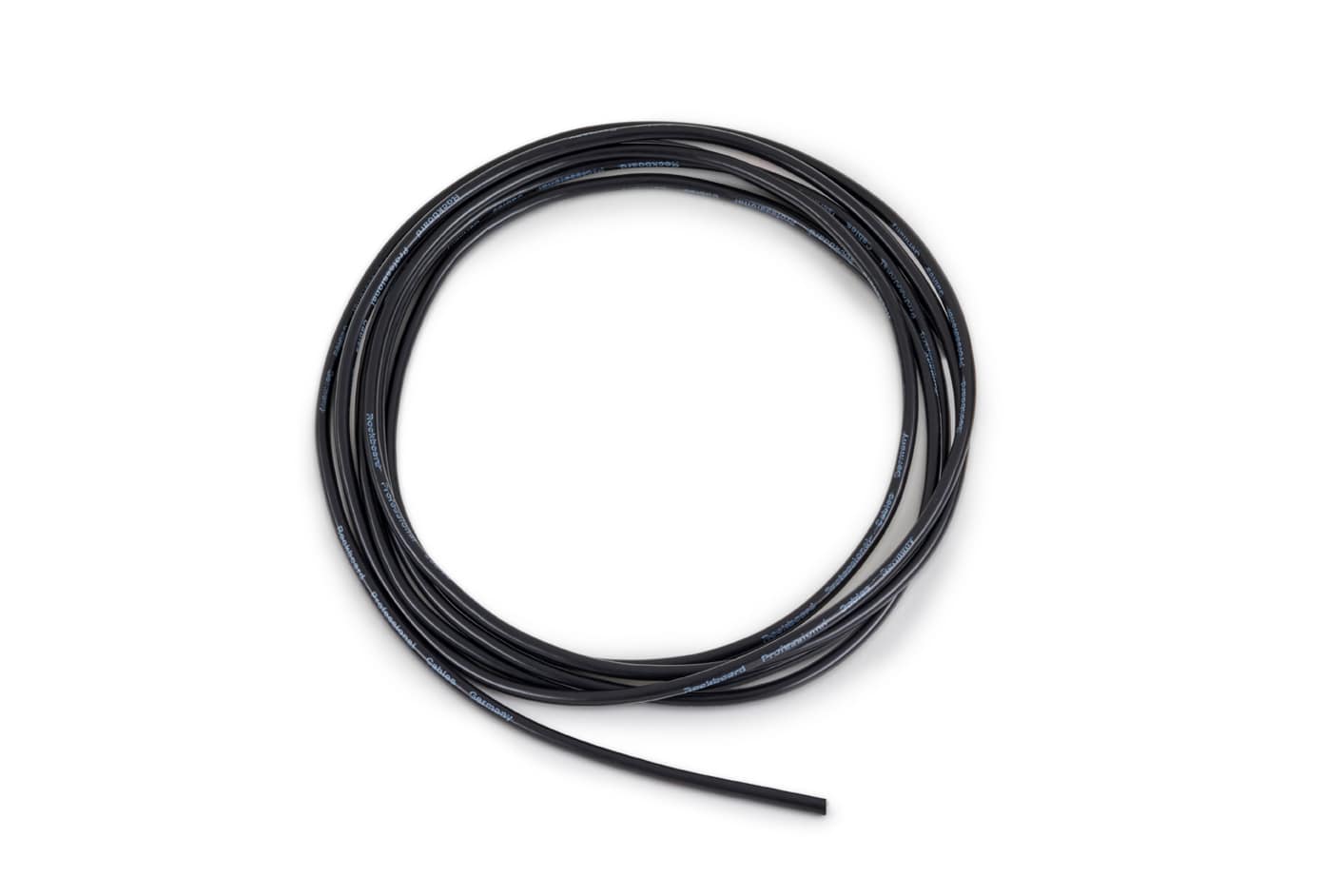

● low capacitance cable for maximum signal transparency
● flexible oxygen free copper conductor 7 / 0.16 mm
● stiff PE insulation
● braided tinned copper shielding 6 x 16 / 0.12 mm
● black outer PVC jacket
● capacitance cond./shield less than 8 pF/decimeter
● conductor resistance of 4 mOhm/decimeter
● operating temperature -15°C to +70°C / 5° F to 158° F
● diameter 4 mm / 3/16″

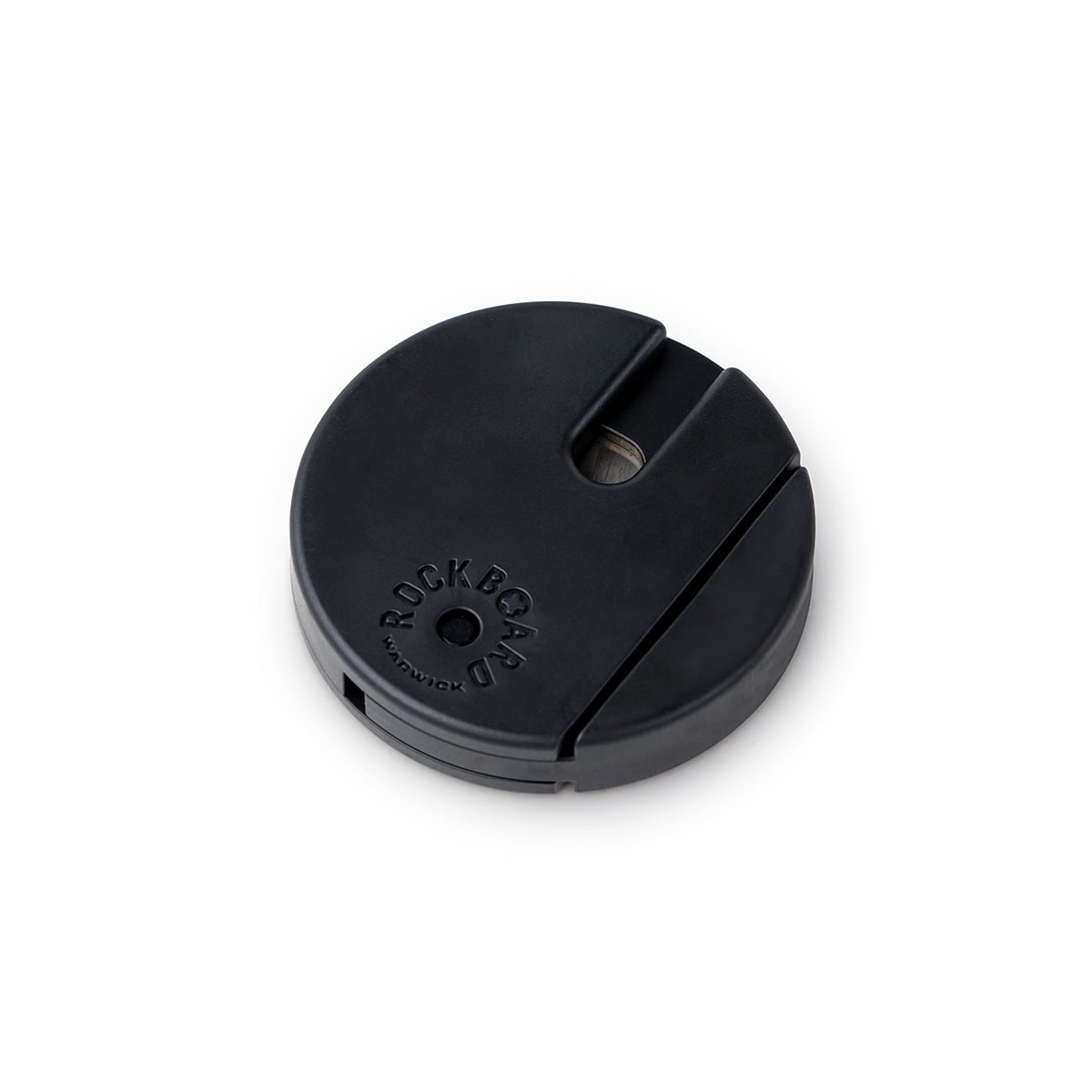

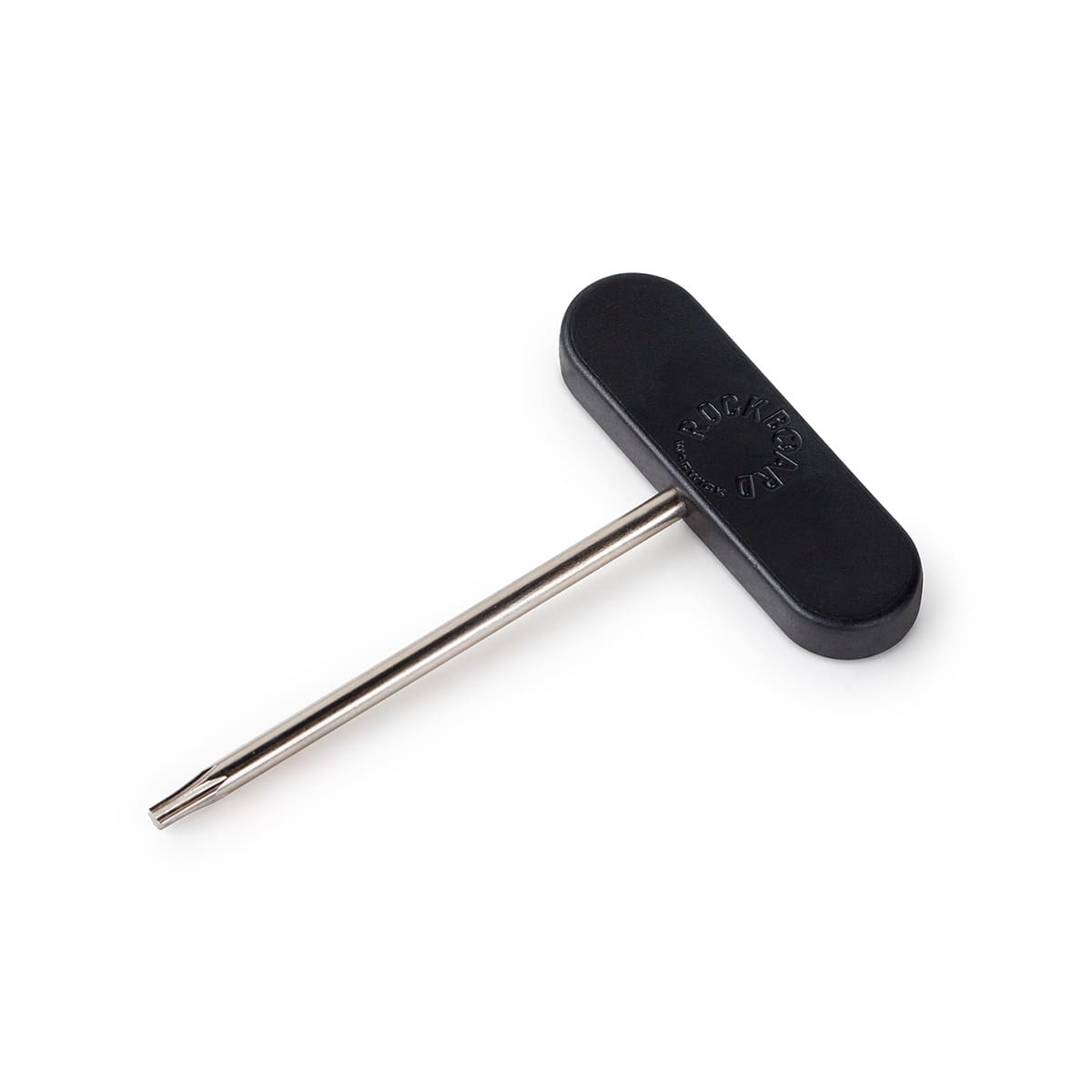

● incl. TX8 wrench, cable cutter
7 in stock
