Pedalboard for effects devices for approx. 7 to 12 effect pedals (depending on size)

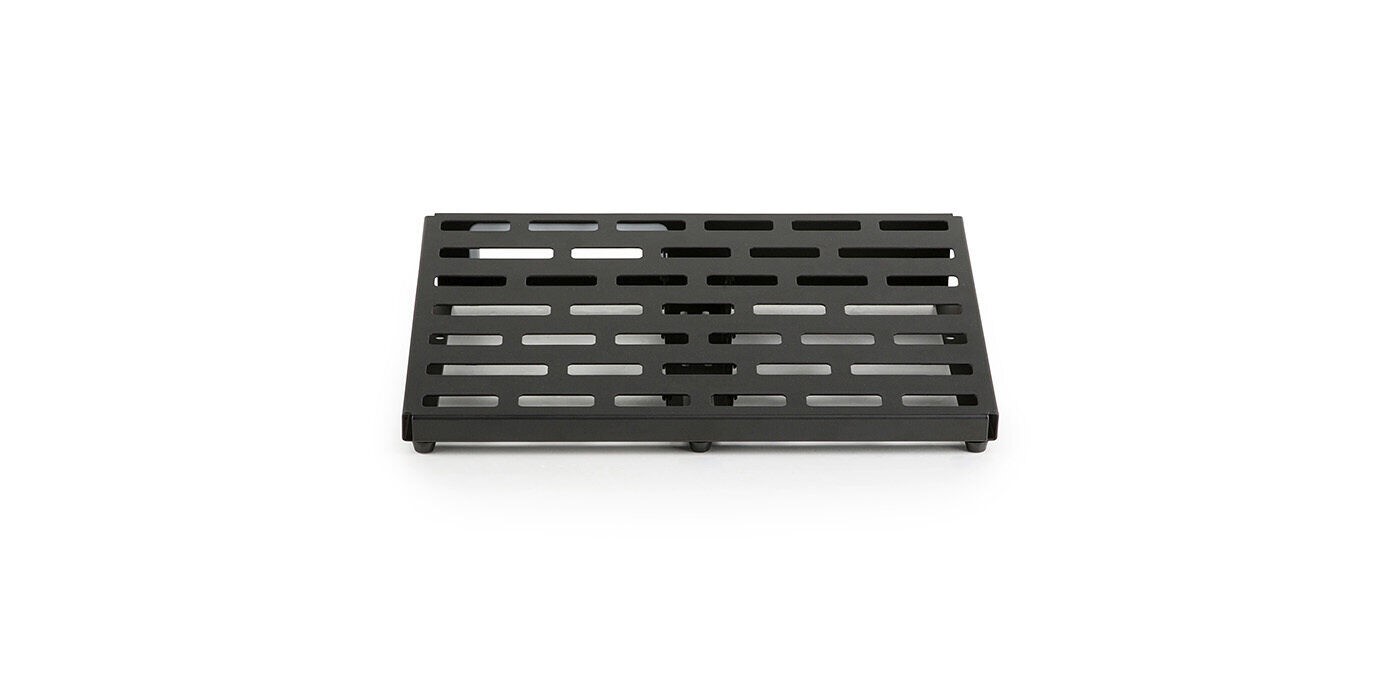

Torsion-resistant and lightweight aluminum construction
Slot design for easy pedal mounting
Right-side mounting holes for RockBoard LED Light (not included)
Made from 1 cold-rolled aluminum sheet
Additional stiffening through U-shaped support strut

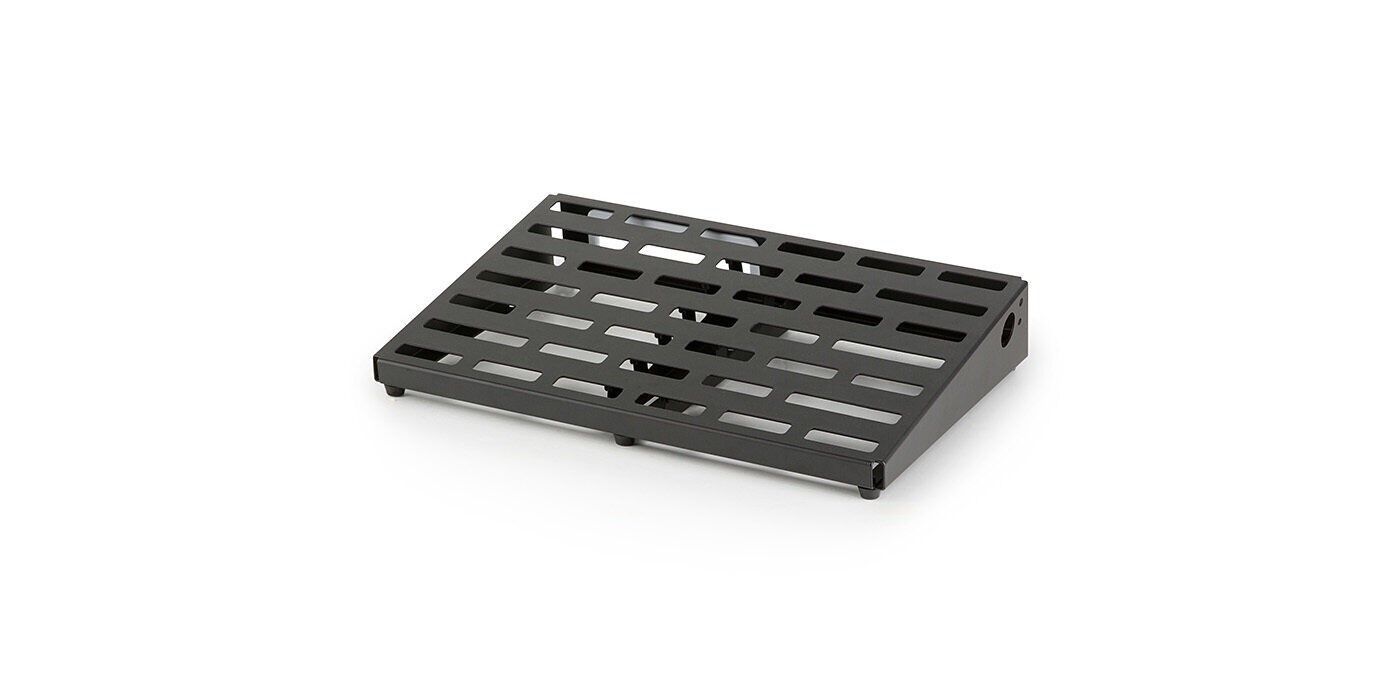

Absolutely flat, 10° angled board surface – no weld seams
Slot for RockBoard® module patch bays
Compatible with RockBoard® The Tray – universal power supply mounting solution
Robust black powder-coated surface
Width 470mm
Depth 330mm
Height including rubber feet 37 – 71 mm
Weight board 1.5 kg

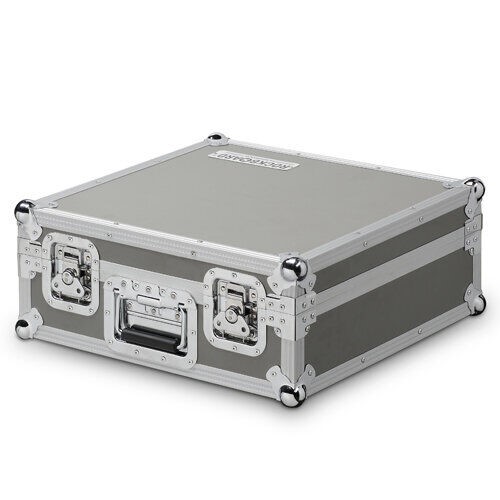

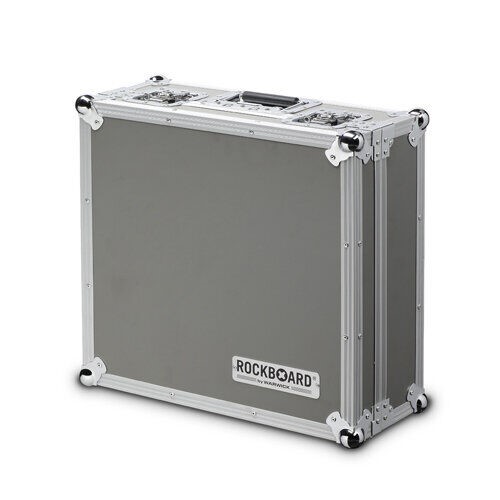

including flight case
Weight flight case approx. 4.5 kg
Internal dimensions of flight case (W x D x H) 480 x 345 x 165 mm
External dimensions of flight case (W x D x H) 510 x 380 x 195 mm
including self-adhesive Velcro (50 mm wide) and fleece tape (25 mm wide) as well as cable ties

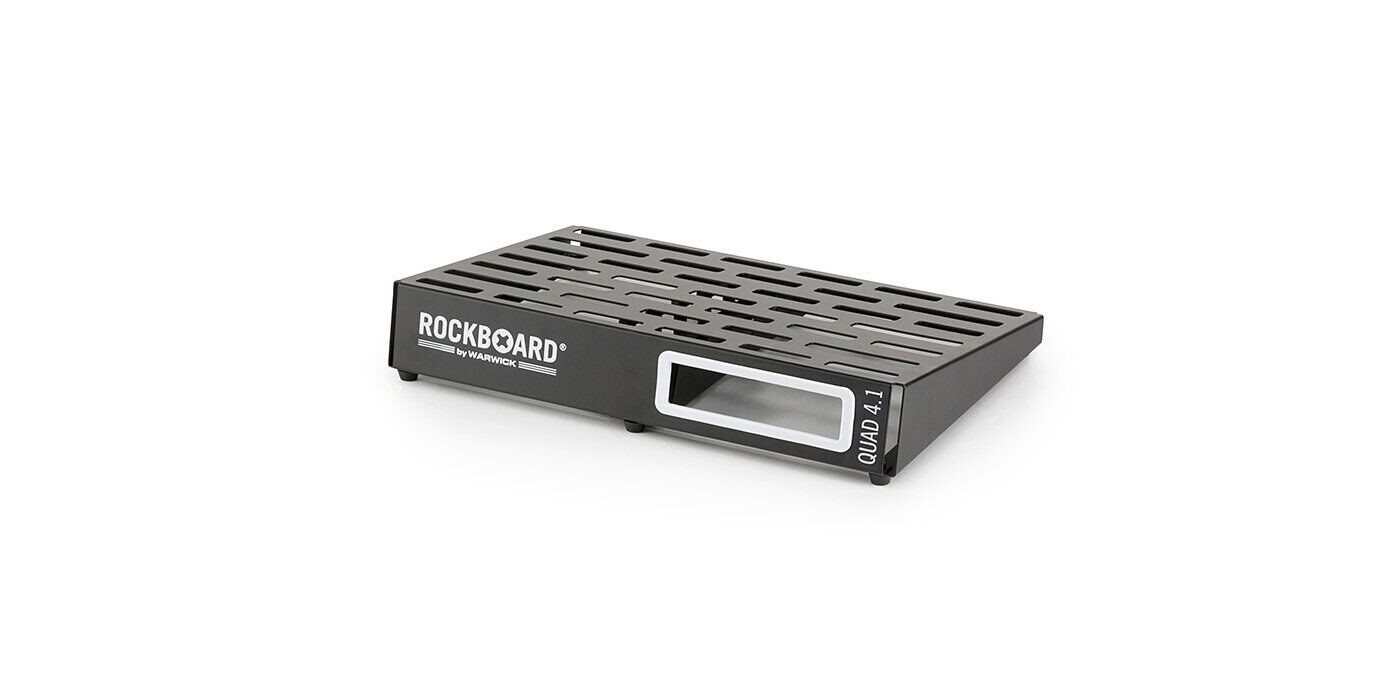

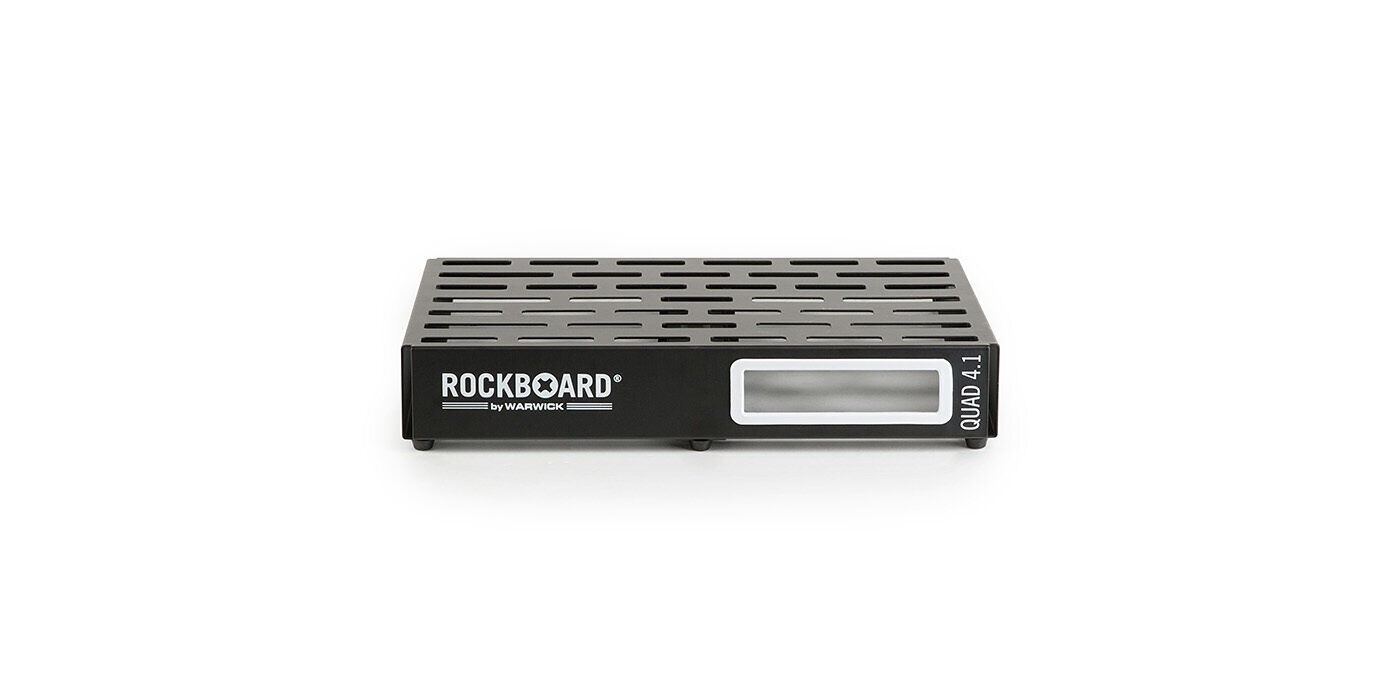

The RockBoard RBO B 4.1 QUAD C pedalboard offers space for approx. 7 to 12 pedals (depending on the size of the pedals) and comes with an ideally coordinated flight case.

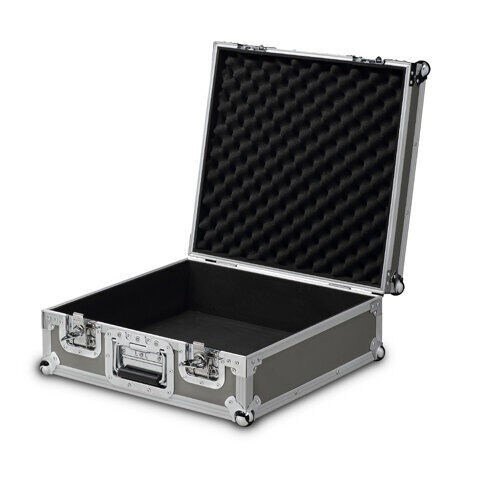

A torsion-resistant aluminum profile frame, a durable PVC surface, non-slip PVC feet and a padded lid offer all the requirements for safe and comfortable transport of valuable pedals.
The RockBoard Pedalboard series has been completely designed to create a pedalboard that is light, torsion-resistant and robust and, above all, allows the use of a wide range of pedals, as well as power supplies and their mounting solutions. Its unique and ingenious design is based on just a single cold-rolled aluminum sheet and does not have a single weld. This means it offers an absolutely flat surface that can be used completely. U-shaped vertical struts give the board additional stability without making it noticeably heavier, meaning the board is completely torsion-resistant and does not bend under maximum load.
The innovative slot design works with common mounting solutions or, perfectly, with our RockBoard QuickMount system. Plus, the slots make it easy to route cables underneath the board surface for a clean setup. Almost all common power supplies can be mounted either directly under the board surface or with our optionally available The Tray or BasePlates.
All RockBoard models (except the DUO series) are compatible with the RockBoard All-in-One PatchBays, which meaningfully expand every RockBoard.
